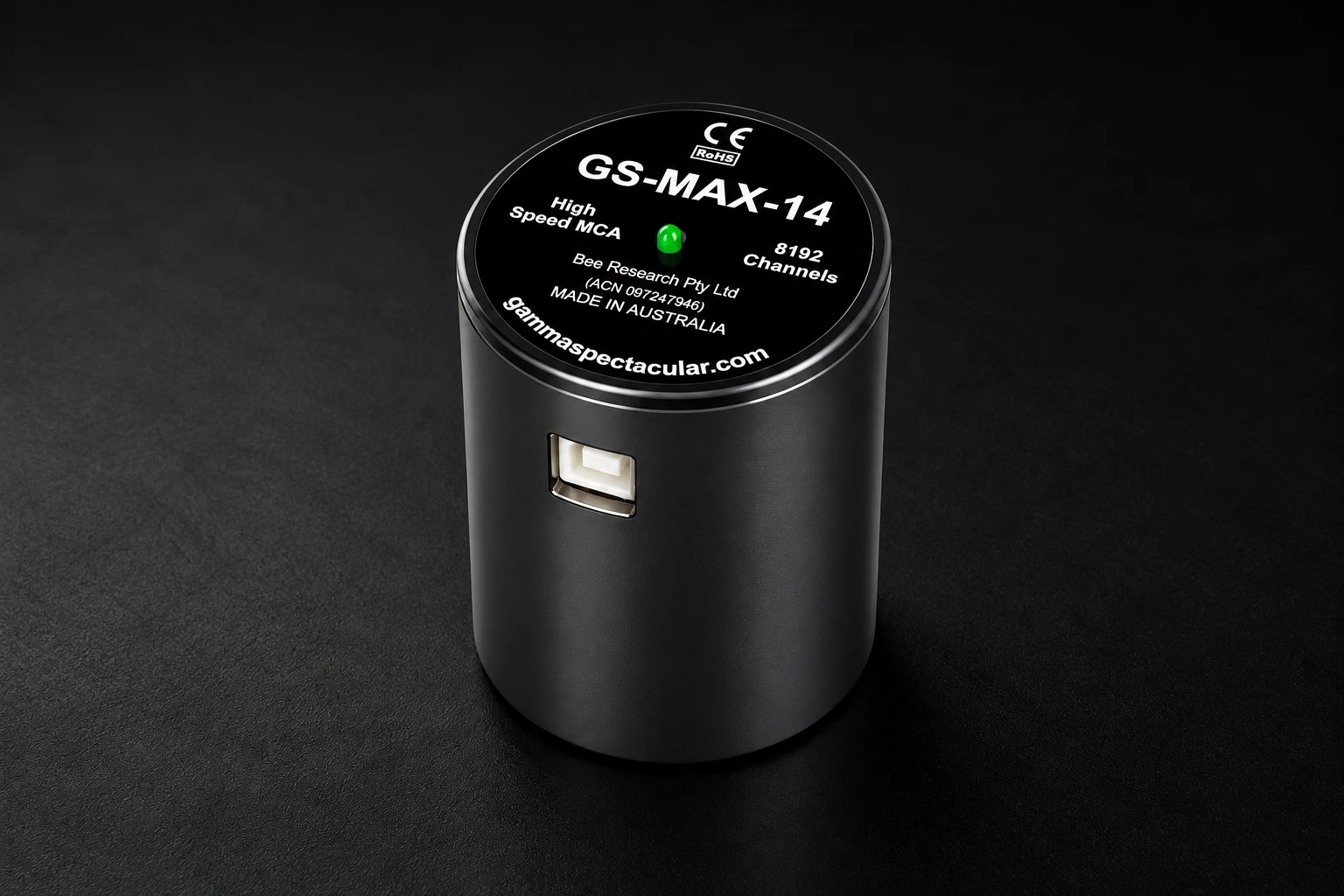

GS-MAX-14 standalone analyzer

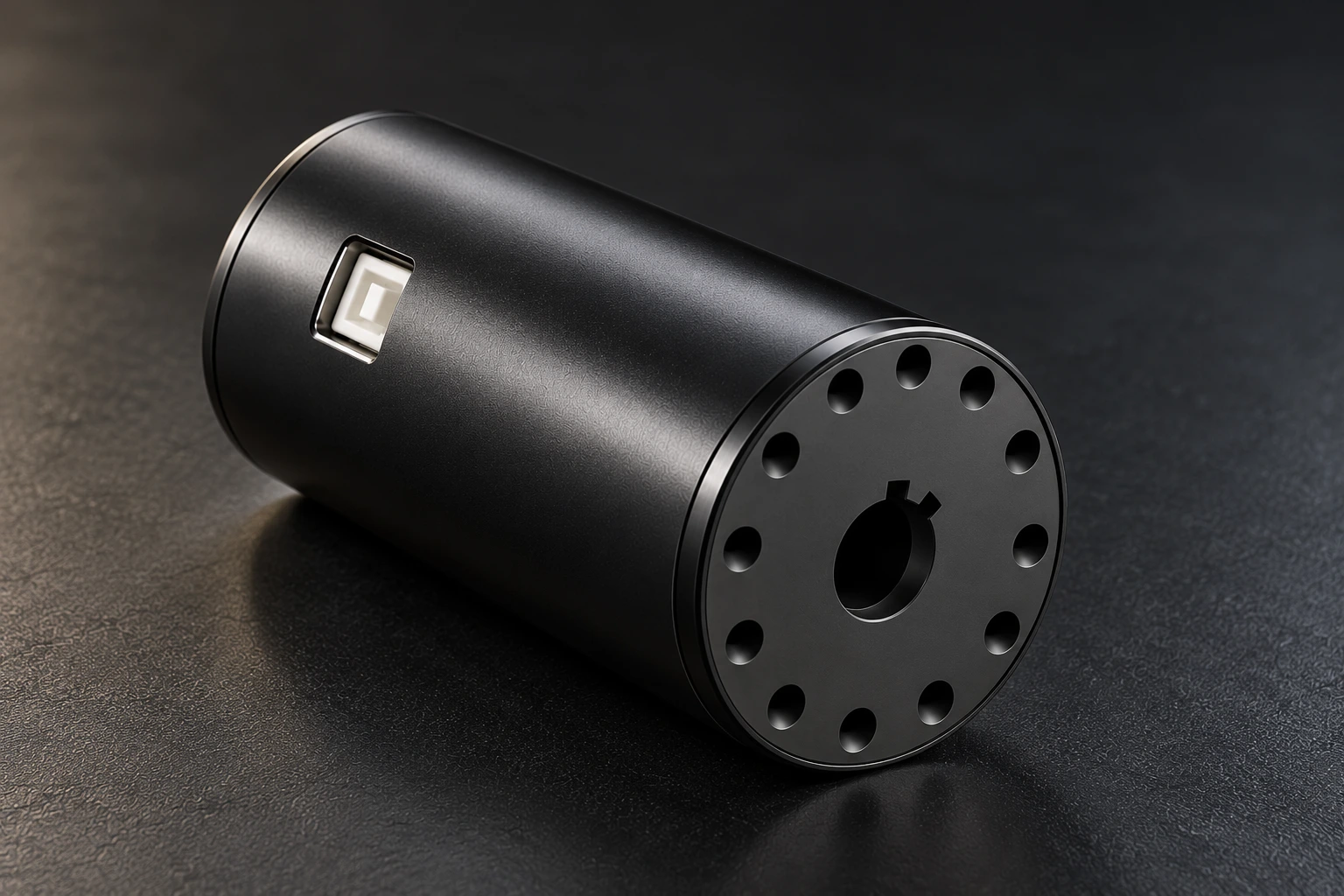

GS-MAX-14 14-pin socket and USB connection

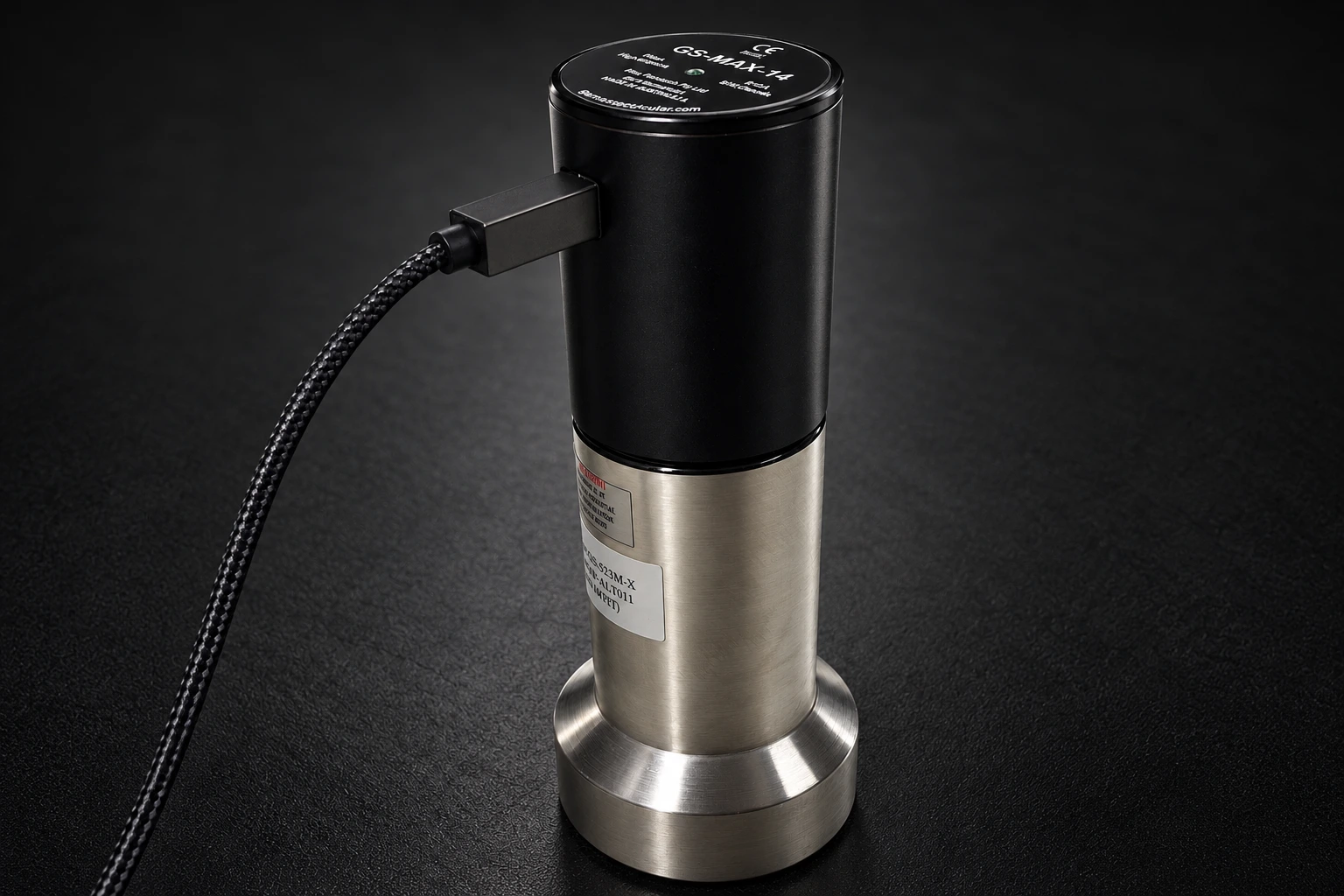

GS-MAX-14 connected to a scintillation detector — example setup
Max Series MCA with 14 Pin Socket (GS-MAX-14)

Max Series MCA with 14 Pin Socket (GS-MAX-14)

GS-MAX-14 is a digital USB multichannel analyzer from Gammaspectacular with a standard 14-pin photomultiplier socket. It connects to compatible PMT-based scintillation detectors and supports count rates up to …
Get in touch
  • Detector interfaceStandard 14-pin PMT socket
  • Bias voltageAdjustable 500–1800 V; polarity option selected to match detector
  • Count rate and connectionUp to 100,000 counts per second; USB Type-B; UART over USB

Overview

GS-MAX-14 is a digital USB multichannel analyzer from Gammaspectacular with a standard 14-pin photomultiplier socket. It connects to compatible PMT-based scintillation detectors and supports count rates up to 100,000 counts per second.

A USB connection links the analyzer to computer spectroscopy software. Detector bias and other hardware settings can be adjusted through software commands. Compatible software includes Becqmoni, ImpulseQt and Atom-Spectra.

Positive and negative bias-polarity options are listed by the supplier. Contact Nucleolenz to confirm the socket arrangement, polarity and detector requirements before selecting a configuration.

Specifications

  • Detector interface Standard 14-pin PMT socket
  • Bias voltage Adjustable 500–1800 V; polarity option selected to match detector
  • Count rate and connection Up to 100,000 counts per second; USB Type-B; UART over USB

Interested in this product?

Contact us for pricing, customization options, and technical specifications.
