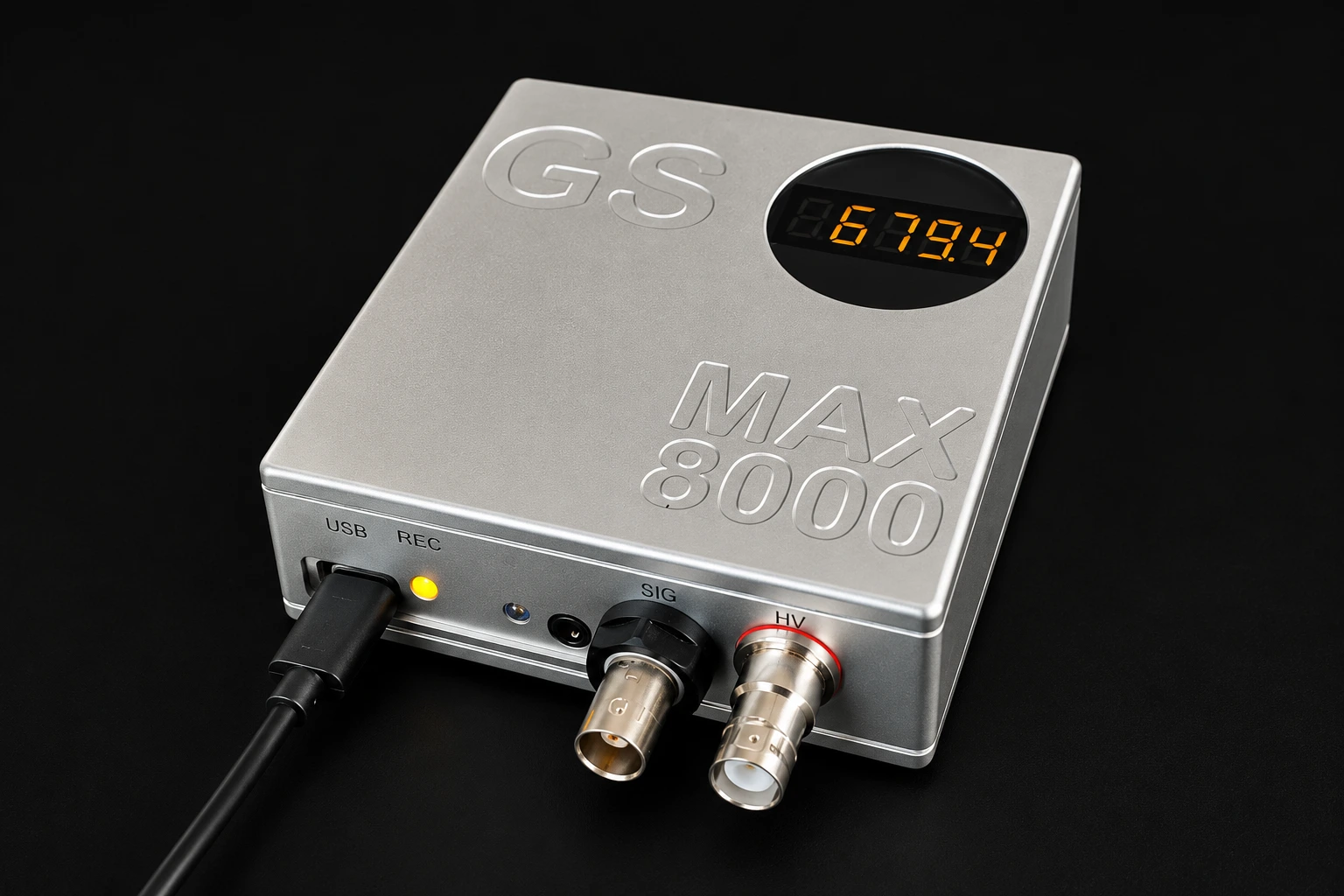

GS-MAX-8000 angled view and connections

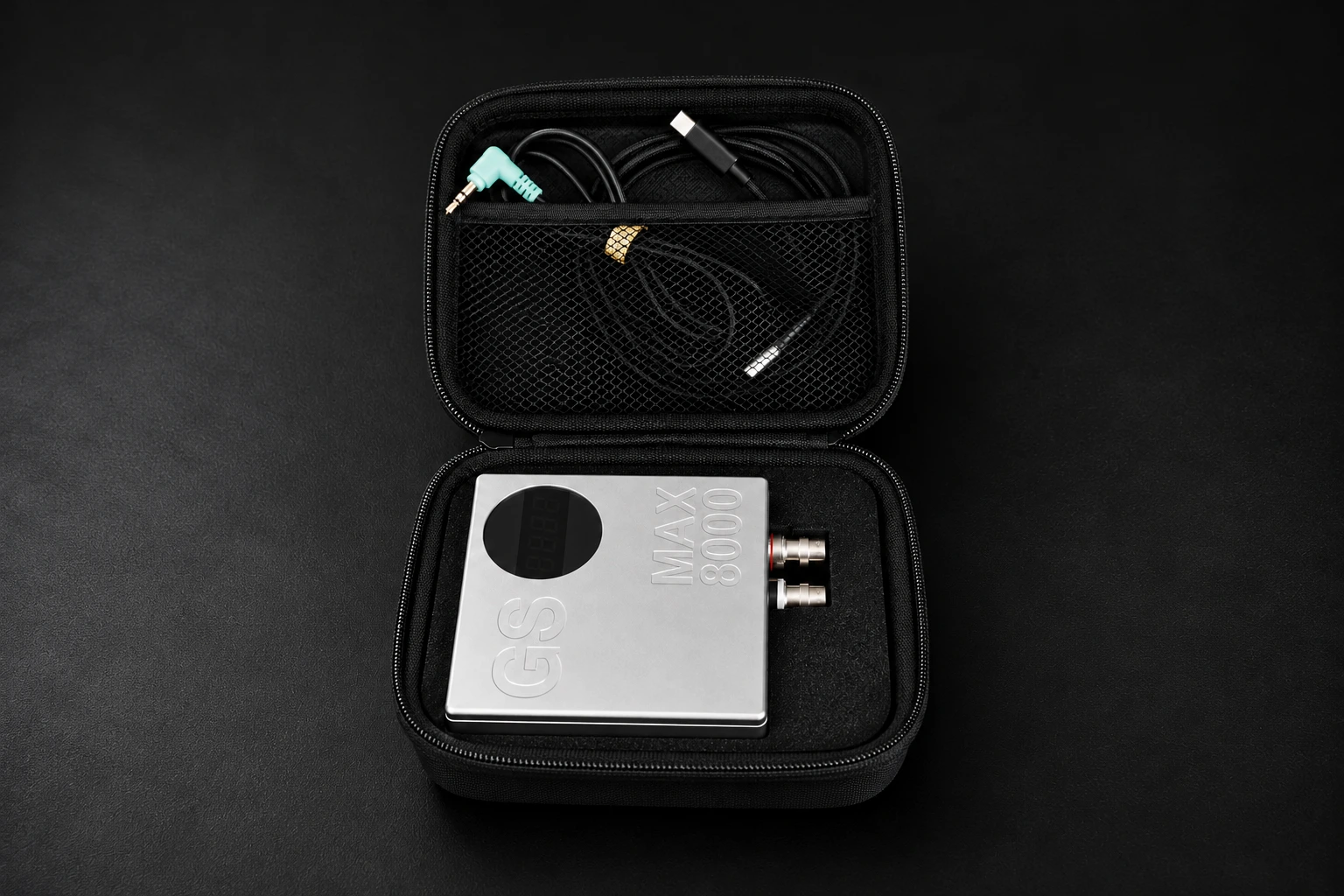

GS-MAX-8000 instrument case and accessories

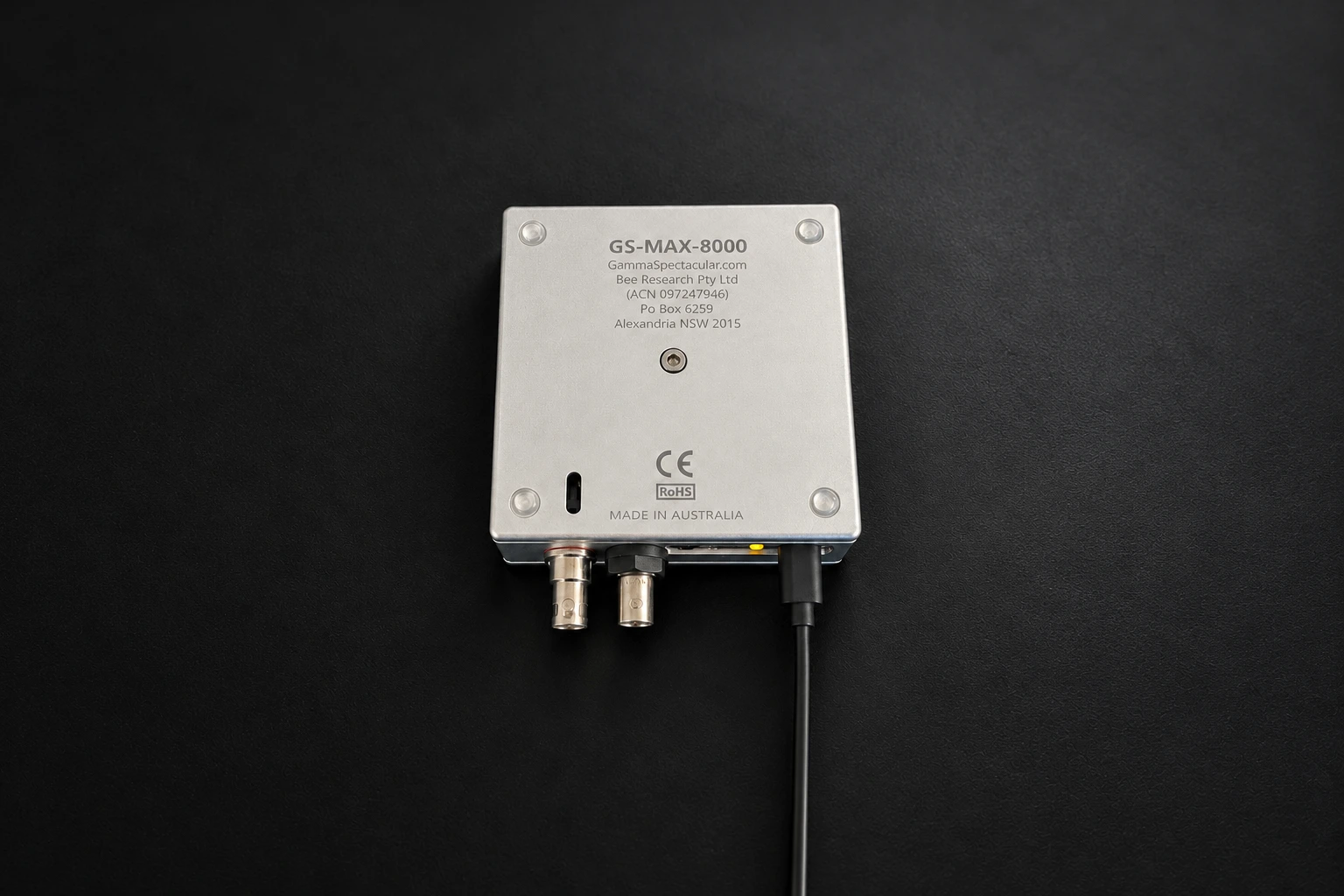

GS-MAX-8000 underside and identification label
Max Series 8K MCA (GS-MAX-8000)

Max Series 8K MCA (GS-MAX-8000)

GS-MAX-8000 is a digital multichannel analyzer from Gammaspectacular for external photomultiplier-based scintillation detectors. Its integrated preamplifier, high-voltage supply and processor convert detector pulses into an 8192-channel spectrum for …
Get in touch
  • Spectrum channels8192
  • Bias voltageAdjustable positive bias: +500 to +2500 V
  • ConnectionsUSB 2.0 Type-C, SHV high voltage, optional BNC signal input

Overview

GS-MAX-8000 is a digital multichannel analyzer from Gammaspectacular for external photomultiplier-based scintillation detectors. Its integrated preamplifier, high-voltage supply and processor convert detector pulses into an 8192-channel spectrum for computer analysis.

USB powers the unit and carries spectrum data. Software commands control the detector bias and acquisition settings. The analyzer is supplied optimised for NaI(Tl) detectors; pulse shaping can be adjusted for other scintillation materials.

SHV and optional BNC connections accommodate detector wiring arrangements. Detector-specific temperature compensation requires activation and calibration. Contact Nucleolenz for detector matching and setup.

Specifications

  • Spectrum channels 8192
  • Bias voltage Adjustable positive bias: +500 to +2500 V
  • Connections USB 2.0 Type-C, SHV high voltage, optional BNC signal input
